RACE USE ONLY !

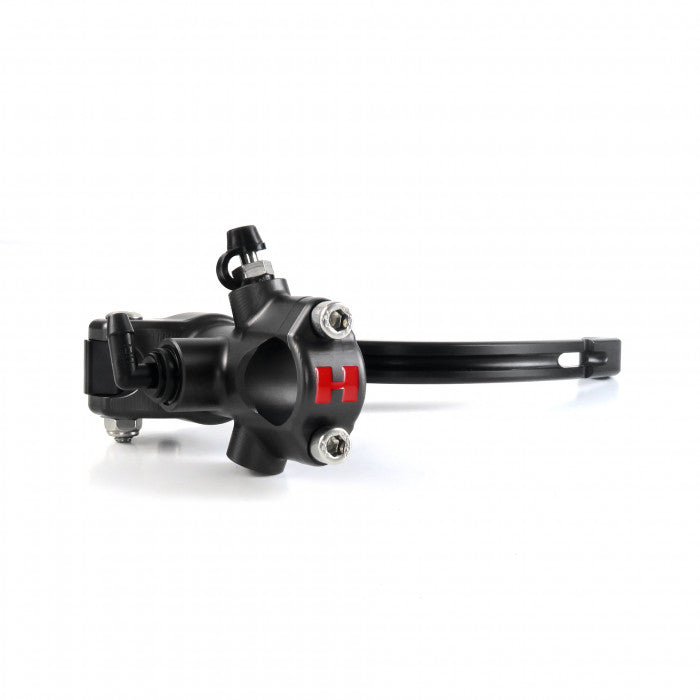

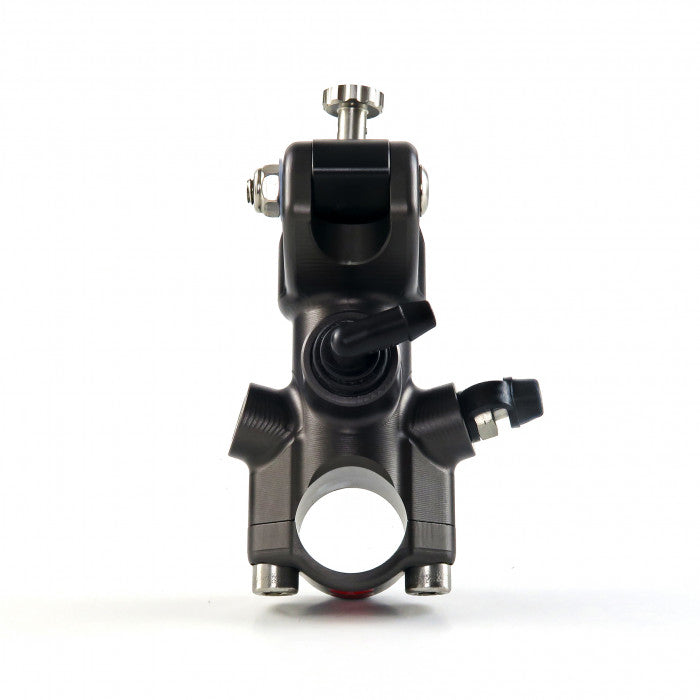

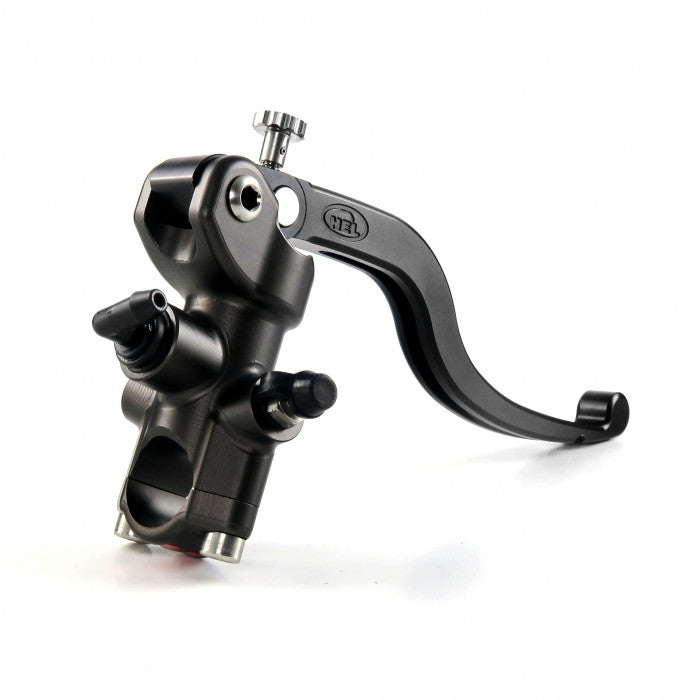

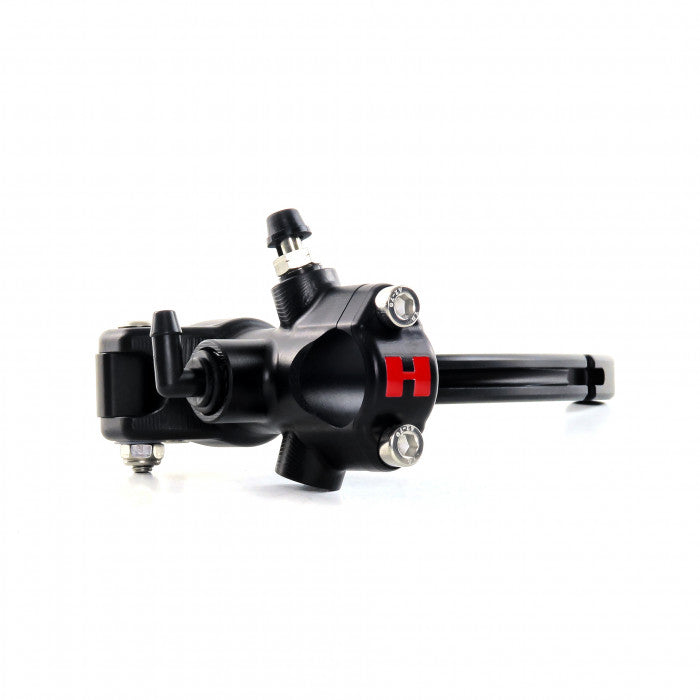

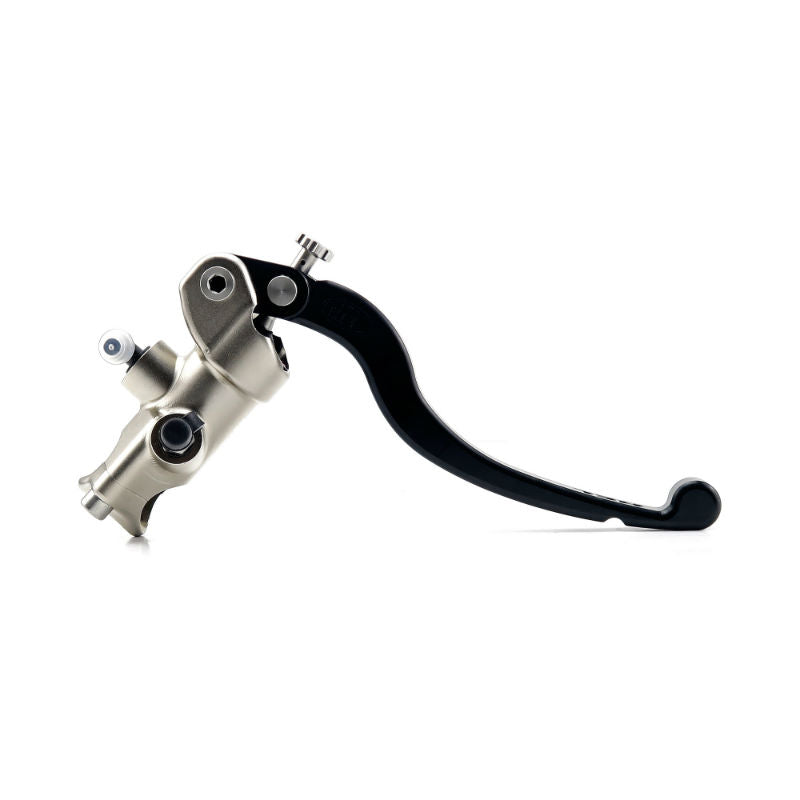

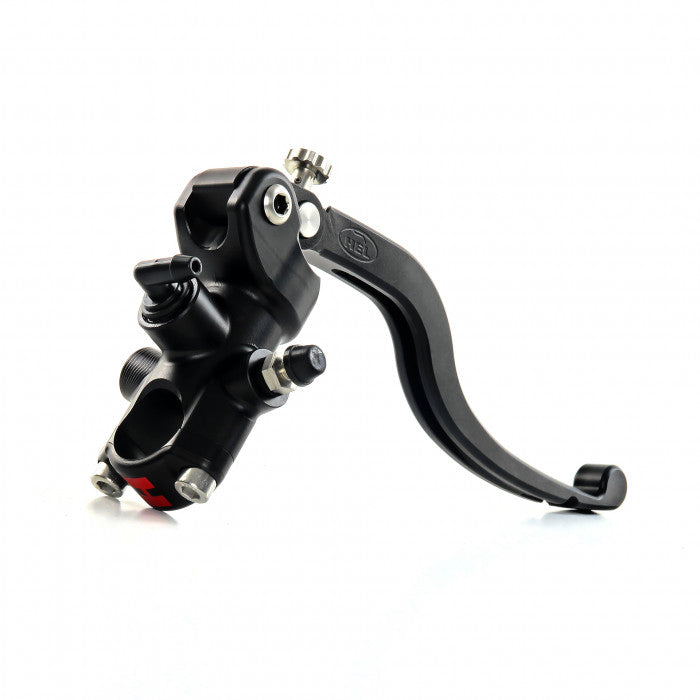

Fully CNC Machined Billet Master Cylinders from HEL Performance
Each master cylinder is CNC machined from solid billets of 6082-T6 aluminium, individually finished and assembled by hand and come with the latest design which allows three leverage ratios from one lever. Providing you with the ultimate adjustability in brake lever feel, modulation for smooth and controllable stopping power.
The lever features a lozenge shaped hole into which one of two plugs are inserted, One has an offset hole – with the hole nearest the master cylinder you get a -1 ratio. If you rotate the plug 180 degrees it offers you a +1 ratio and if you use the plug with a central hole you obtain a 1:1 ratio.
This means that with a 15mm or 16mm piston master cylinder you can obtain a 15/16, 16/16 and 17/16 from one lever and two inserts.
With the 19mm piston master cyilinder you can obtain an 18/19, 19/19 and a 20/19 from one lever and two inserts.
16 - Clutch master cylinders or single front brake (small CC models)
18 - More lever travel and feel on dual caliper systems (larger CC models).
19 - Medium lever travel but harder feel - a good compromise.
20 - Less lever travel and the hardest lever feel.
